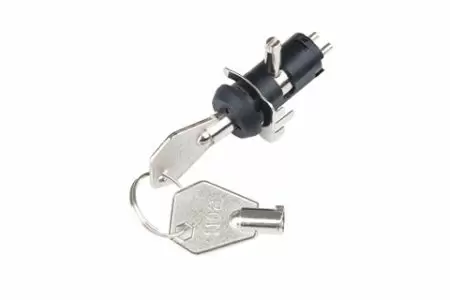

12mm Dual-Functioned Plastic Material Switch Lock With Tubular Key

5 0 Reviews

SHP1096

Lever Tumbler Lock, Tubular Lock, Lock Switch

12mm Dual-Functioned Switch Lock with Tubular key is made of nylon plastic material housing and cylinder, zinc alloy tubular keys, 4 pin tumbler mechanism for all keyed alike, 13mm dimension of pin assembled on the middle of lock, other dimensions of pins available upon request, dual-functioned switch lock with stronger function available for more application.

Quantity:
Specification

The lock made with 2 terminals for switch function OFF-ON of circuit type SPST, unelectrified at 12:00 position and electrify at 3:00 position, key rotation 12:00 ~ 3:00 position for key pull out in 12:00 and 3:00 positions, the lock is mounted by speed clip that can process the lock with wire assembly, laser engraved, and stamping key code upon customer requested.

Contact rating: 0.2A, 125VAC passed 6,000 times of life cycle test, ROHS and REACH compliant, suitable to use on copy machine, alarm system and electronic instrument.

Features
  • PA66 + GF30% housing and cylinder.
  • 2 pin tumbler mechanism.
  • Zinc alloy tumbler keys, nickel plated.
  • "L" dimension 13mm standard; other dimensions available upon request.
  • Dual-functioned Key Lock Switch.
  • Silver plated contacts and golden plated terminals.
  • Key withdrawals in both positions.
  • 2 position (off-on) 2 terminals.
  • Speed clip mounted.
  • All keyed alike.
  • 1 combination.
Order Information
  • Refer to drawings, samples, etc. as the confirmation of product specification before placing the order.
  • After the order confirmed, the cancellation of the order or change the order contents can be allowed within 7 days from the date of receiving the order.
  • Delivery time: Estimated delivery time for standard product orders of 3,000pcs is within 45 days.
  • The minimum order quantity of the product is 500PCS/lot, and the order of "price based on quantity" also can be accepted (for details, please negotiate with the salesman)
  • Products can be customized according to customer requirements, as: Key combination, parts configuration, wire soldering process, surface treatment, key extraction position, adding anti-vibration, dust-proof, anti-static, and other functions.
  • UL approval and RoHS 2.0 (2011/65/EU) compliant.
  • The test report of the specified project can be provided according to the customer requested.
