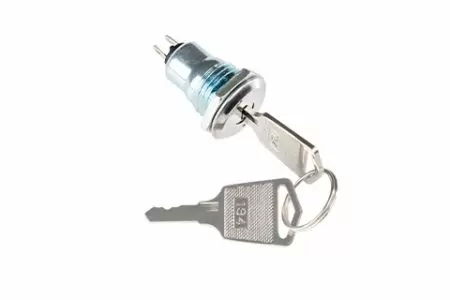

16mm Diameter Mid-Size Switch Lock

Specification

Disc tumbler lock (S334B) is 2 terminals and switch function OFF-ON (SPST), key rotates at 12:00 ~ 3:00 2 positions. One or two key pull positions available, the lock is installed by hex nut or speed clip. It is available the lock with wire assembly, stamping key code and machining upon customer requested.

Contact rating: 0.2A, 125VAC, ROHS and REACH compliant, passed 6,000 times life cycle test, suitable to use on control panel of ejection machine, monitor system, alarm and communication facilities.

Features

• Zinc alloy die cast housing and nylon cylinder.
• Stainless steel capped bezel.
• Zinc plated standard.
• 4 disc tumbler mechanism.
• Brass keys, nickel plated.
• Key may be withdrawn in one or both positions.
• Silver plated contacts and terminals.
• 2 position (off-on) 2 terminals.
• Hex nut or speed clip mounted.
• All keyed alike or 14 combinations standard.
• 14 combinations available.

Order Information

• Refer to drawings, samples, etc. as the confirmation of product specification before placing the order.
• After the order confirmed, the cancellation of the order or change the order contents can be allowed within 7 days from the date of receiving the order.
• Delivery time: Estimated delivery time for standard product orders of 3,000pcs is within 45 days.
• The minimum order quantity of the product is 500PCS/lot, and the order of "price based on quantity" also can be accepted (for details, please negotiate with the salesman)
• Products can be customized according to customer requirements, as: Key combination, parts configuration, wire soldering process, surface treatment, key extraction position, adding anti-vibration, dust-proof, anti-static, and other functions.
• UL approval and RoHS 2.0 (2011/65/EU) compliant.
• The test report of the specified project can be provided according to the customer requested.

Gallery

•

  S334B Disc tumbler lock SPEC.
