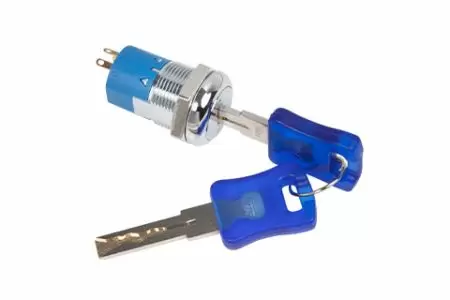

19mm UL Certified And Meets IP65 Switch Wave-Cutting Key Lock

5 0 Reviews

S2901

Lock Switch

19mm UL approval and Meets IP65 switch lock with brass internal wave-cutting key made of zinc alloy die cast material housing and cylinder with bright nickel plated, internal tooth of brass key with plastic cover of nickel plated, 8 disc tumbler mechanism designed for keyed alike or 20 key code combinations as standard, available for 5,000 combinations maximum, golden plated contacts and terminals assembled.

Quantity:
Inquire Add to Basket
Specification

The lock made with 3 ~ 8 terminals based on variety specification requested that has 2 ~ 5 multistage designed, variety different for key withdrawal positions, various models and functions refer to drawing, key withdrawal, switch function and contact adjusted available upon requested, lock is mounted by hex nut that can process the lock with wire assembly, laser engraved, stamping key code depend on customer requested for making mass production quantity of customized products.

Contact rating: 4A 125VAC, 2A 250VAC, 4A 28VDC Contact resistance: 50 Milli-Ohms Max, Insulation resistance: 109 Ohm Min. Dielectric strength: 1000VAC-1 Minute, passed life cycle test of 6,000 times, UL approval, ROHS and REACH compliant suitable to use on automatic cash register, medical equipment, burglarproof device and monitor system.

Features
  • Zinc alloy die cast housing and cylinder.
  • Bright nickel plated standard.
  • 8 disc tumbler mechanism.
  • Brass internal-wave cutting keys, nickel plated, with plastic cover.
  • Various key withdrawals available.
  • Golden plated contacts and terminals.
  • Hex nut or speed clip mounted.
  • All keyed alike or 20 combinations standard.
  • 5,000 combinations available.
  • Meets IP65 standard.
Function Specification
  • Contact Rating: 4A 125VAC, 2A 250VAC, 4A 28VDC
  • Contact Resistance: 50Milli-Ohms Max.
  • Insulation Resistance: 109 Ohm Min.
  • Dielectric Strength: 1000 VAC -1 Minute.
Order Information
  • Refer to drawings, samples, etc. as the confirmation of product specification before placing the order.
  • After the order confirmed, the cancellation of the order or change the order contents can be allowed within 7 days from the date of receiving the order.
  • Delivery time: Estimated delivery time for standard product orders of 3,000pcs is within 45 days.
  • The minimum order quantity of the product is 500PCS/lot, and the order of "price based on quantity" also can be accepted (for details, please negotiate with the salesman)
  • Products can be customized according to customer requirements, as: Key combination, parts configuration, wire soldering process, surface treatment, key extraction position, adding anti-vibration, dust-proof, anti-static, and other functions.
  • UL approval and RoHS 2.0 (2011/65/EU) compliant.
  • The test report of the specified project can be provided according to the customer requested.
