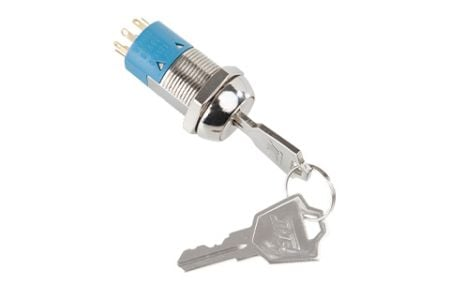

19mm UL Certified Switch Lock (Bright Nickel Plated Standard)

5 0 Reviews

S2071, S2072, S2171

Disc Tumbler Lock, Look Switch

19mm diameter UL approval key switch lock (S2071 S2072) has zinc alloy die cast material housing and cylinder with bright nickel plated, S2171 special for stainless steel capped bezel with dust shutter mechanism. 5 disc tumbler mechanism designed and brass flat keys with nickel plated for keyed alike or 20 key code combinations as standard, available for 150 combinations maximum, golden plated contacts and terminals assembled.

Quantity:
Inquire Add to Basket
Specification

Switch Lock (S2071, S2171) made with 3 ~ 8 terminals based on variety specification requested that has 2 ~ 5 multistage designed, variety different for key withdrawal positions, various models and functions refer to drawing, key withdrawal, switch function and contact adjusted available upon requested, S2072 is same as S2071 except spring loaded of momentary contact. S2171 is lock is mounted by hex nut or speed clip that can process the lock with wire assembly, laser engraved, stamping key code depend on customer requested for making mass production quantity of customized products.

Contact rating: 4A 125VAC, 2A 250VAC, 4A 28VDC Contact resistance: 50 Milli-Ohmas Max, Insulation resistance: 109 Ohm Min. Dielectric strength: 1000VAC-1 Minute, passed life cycle test of 6,000 times, UL approval, ROHS and REACH compliant suitable to use on golf cart, motorcycle, and electric control box.

Features
  • Zinc alloy die cast housing and cylinder.
  • S2171 stainless steel capped bezel with dust shutter mechanism.
  • Bright nickel plated standard.
  • 5 disc tumbler mechanism.
  • Brass keys, nickel plated.
  • Various key withdrawals available.
  • S2071 S2171 is normal contact, S2072 is spring load for momentary contact.
  • Golden plated contacts and terminals.
  • Hex nut or speed clip mounted.
  • All keyed alike or 20 combinations standard.
  • 150 combinations available.
Function Specification
  • Contact Rating: 4A 125VAC, 2A 250VAC, 4A 28VDC
  • Contact Resistance: 50Milli-Ohms Max.
  • Insulation Resistance: 109 Ohm Min.
  • Dielectric Strength: 1000 VAC -1 Minute.
Order Information
  • Refer to drawings, samples, etc. as the confirmation of product specification before placing the order.
  • After the order confirmed, the cancellation of the order or change the order contents can be allowed within 7 days from the date of receiving the order.
  • Delivery time: Estimated delivery time for standard product orders of 3,000pcs is within 45 days.
  • The minimum order quantity of the product is 500PCS/lot, and the order of "price based on quantity" also can be accepted (for details, please negotiate with the salesman)
  • Products can be customized according to customer requirements, as: Key combination, parts configuration, wire soldering process, surface treatment, key extraction position, adding anti-vibration, dust-proof, anti-static, and other functions.
  • UL approval and RoHS 2.0 (2011/65/EU) compliant.
  • The test report of the specified project can be provided according to the customer requested.
