19mm Chicago Switch Lock With Brass Flat Key

5 0 Reviews

S203, S203M, S203A, S203AM, S203B, S203BM

Disc Tumbler Lock, Chicago Lock

19mm power switch lock, also known as Chicago lock, zinc alloy die-cast housing and cylinder, bright chrome plated, brass flat double-bitted key, 11 disc tumbler mechanism, 5 number changes available, a variety of terminal changes.

Quantity:
Inquire Add to Basket
Specification

Two-stage switch design, the switch function OFF-ON (SPST), the key can be pull out at 12 o'clock position only, or can be withdrawn at 12 o'clock and 3 o'clock two positions, S203 is a screw terminal foot, S203A is a flat terminal foot, S203B is a cylindrical terminal foot, and there is another spring load for momentary contact and key return at 3 o'clock instantaneous power return, only 12 o'clock out. According to customer needs to increase the processing process, such as: welding wire, thunder carving, marking, etc. Based on convenient production quantity, it can also be customized according to customer needs.

Contact rating: 4A 125VAC, contact resistance: 50 Milli-Ohmas Max, Insulation resistance: 109 Ohm Min. Dielectric strength: 1000VAC-1 Minute, passed life cycle test of 6,000 times and UL approval, ROHS and REACH compliant suitable to use on contact of control panel, instrument equipment, charging meter and burglarproof device.

Features
  • Zinc alloy die cast housing and cylinder.
  • Bright chrome plated standard.
  • 11 disc tumbler mechanism.
  • Double-bitted brass keys.
  • Key may be withdrawn in one or both positions.

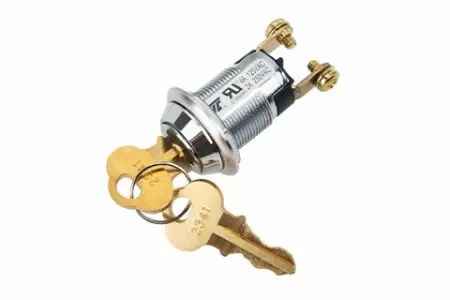

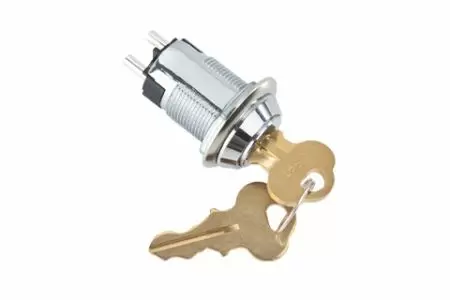

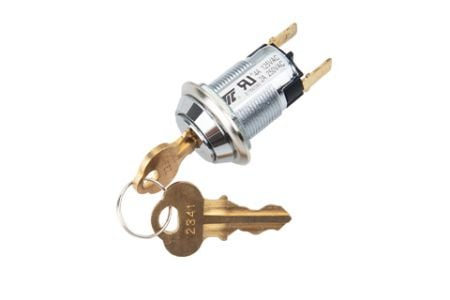

  • S203 S203A S203B 2 position (off-on) 2 terminals S203 is screw terminals, S203A is spade terminals, S203B is post terminals.
  • S203M S203AM S203BM 2 position (off-on) 2 terminals, spring loaded for momentary contact.
  • Hex nut mounted.
  • All keyed alike or 5 combinations standard.
  • 5 combinations available.
Function Specification
  • Contact Rating: 4A 125VAC, 2A 250VAC.
  • Contact Resistance: 50Milli-Ohms Max.
  • Insulation Resistance: 109 Ohm Min.
  • Dielectric Strength: 1000 VAC -1 Minute.
Order Information
  • Refer to drawings, samples, etc. as the confirmation of product specification before placing the order.
  • After the order confirmed, the cancellation of the order or change the order contents can be allowed within 7 days from the date of receiving the order.
  • Delivery time: Estimated delivery time for standard product orders of 3,000pcs is within 45 days.
  • The minimum order quantity of the product is 500PCS/lot, and the order of "price based on quantity" also can be accepted (for details, please negotiate with the salesman)
  • Products can be customized according to customer requirements, as: Key combination, parts configuration, wire soldering process, surface treatment, key extraction position, adding anti-vibration, dust-proof, anti-static, and other functions.
  • UL approval and RoHS 2.0 (2011/65/EU) compliant.
  • The test report of the specified project can be provided according to the customer requested.
