12mm Switch Lock With Tubular Key & Plastic Cover

Specification

12mm Diameter Switch Lock (NS106, NS106M) is 2 terminals and switch function OFF-ON (SPST), key rotates at 12:00 ~ 3:00 2 positions. NS106 One or two key pull positions are available. NS106M is momentary for key spring back and pull out at 12:00 position only. Each lock made with 2 keys, a hex nut. 200 key code combinations available. Jin Tay supports wire assembly, laser engraved or key code stamping upon customer requested.

Life cycle test of 6,000 times at contact rating by 0.2A 125VAC, ROHS and REACH compliant. The locks are used on switch for conduction control equipment, communication facilities, alarm system and power telephone so on.

Features

• Zinc alloy die cast housing and cylinder.
• Bright Chrome plated standard.
• 4 pin tumbler mechanism.
• Zinc alloy tubular keys, chrome plated, with plastic cover.
• Key may be withdrawn in one or both positions.
• Silver plated contacts and terminals.
• NS106 2 position (off-on) 2 terminals.
• NS106M 2 position (off-on) 2 terminals spring loaded for momentary contact.
• Hex nut mounted.
• All keyed alike or 200 combinations standard.
• 200 combinations available.

Order Information

• Refer to drawings, samples, etc. as the confirmation of product specification before placing the order.
• After the order confirmed, the cancellation of the order or change the order contents can be allowed within 7 days from the date of receiving the order.
• Delivery time: Estimated delivery time for standard product orders of 3,000pcs is within 45 days.
• The minimum order quantity of the product is 500PCS/lot, and the order of "price based on quantity" also can be accepted (for details, please negotiate with the salesman)
• Products can be customized according to customer requirements, as: Key combination, parts configuration, wire soldering process, surface treatment, key extraction position, adding anti-vibration, dust-proof, anti-static, and other functions.
• UL approval and RoHS 2.0 (2011/65/EU) compliant.
• The test report of the specified project can be provided according to the customer requested.

Gallery

•

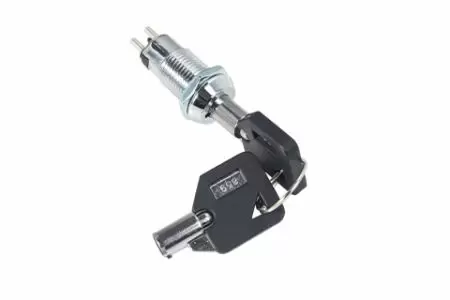

  NS106 Micro switch lock with tubular key SPEC.

•

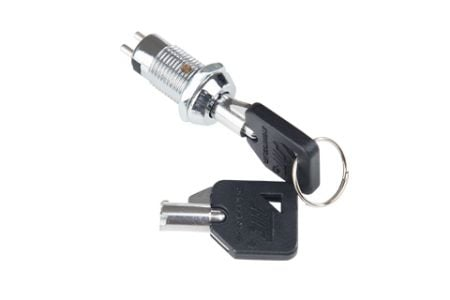

  NS117 Micro switch lock with tubular key SPEC.

•

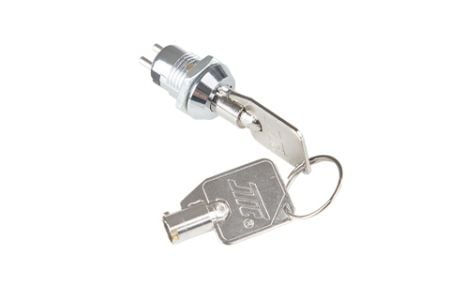

  S126 Micro switch lock with tubular key SPEC.
