L-Type And T-Type Handle Lock

5 0 Reviews

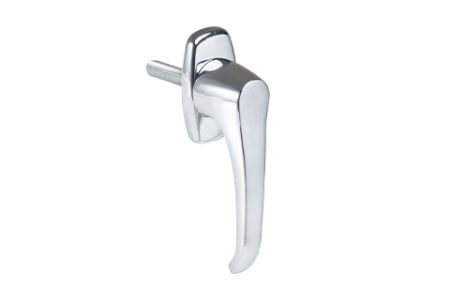

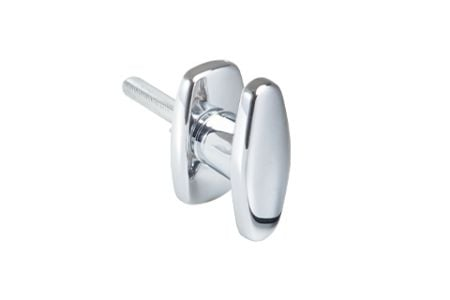

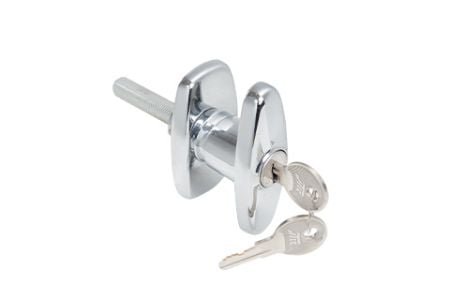

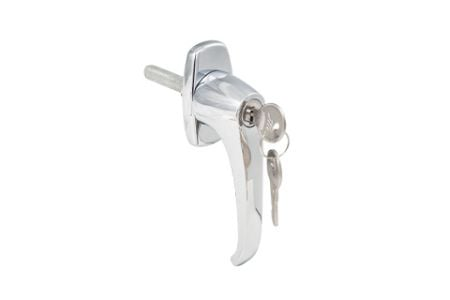

L704, L705, T704, T705

Mechanical Lock, Cabinet Lock, Door Lock, L-Handle, T-Handle

This kind of handle lock directly uses the shape of the handle as the door open and close function. There are L-type and T-type which has lock assembly design and also added anti-theft function. Cylinder is 5 disc tumbler mechanism which can arrange to 100 key code combination. The key and handle can be turned 90 degrees clockwise or 90 degrees counter-clockwise. Surface bright Chrome finish. The product body is sturdy.

Quantity:
Inquire Add to Basket

The distance between the mounting holes of the handle is 1 1/2, then confirm the steering of the key and the handle position. Also check the spindle can be mount the screw hole or not. The surface color can be customized available. This product is suitable for medical equipment, electrical box equipment, cabinets, storage boxes, display cabinets…etc.

Features
  • Zinc alloy die cast housing and cylinder.
  • Bright chrome plated standard; other finishes available upon request.
  • L705 T705 locking, 5 disc tumbler mechanism.
  • 90 degree clockwise or 90 degree counter-clockwise rotation.
  • 1 1/2" blind mount centers.
  • "L" dimension 2" threaded standard, other sizes available upon request.
Order Information
  • Refer to drawings, samples, etc. as the confirmation of product specification before placing the order.
  • After the order confirmed, the cancellation of the order or change the order contents can be allowed within 7 days from the date of receiving the order.
  • Delivery time: Estimated delivery time for standard product orders of 3,000pcs is within 45 days.
  • The minimum order quantity of the product is 500PCS/lot, and the order of "price based on quantity" also can be accepted (for details, please negotiate with the salesman)
  • Products can be customized according to customer requirements, as: Key combination, parts configuration, wire soldering process, surface treatment, key extraction position, adding anti-vibration, dust-proof, anti-static, and other functions.
  • UL approval and RoHS 2.0 (2011/65/EU) compliant.
  • The test report of the specified project can be provided according to the customer requested.
