19mm Vending Machine Door Lock

5 0 Reviews

VT510, VT650

Bolt Lock, Tubular Lock, Vending Handle with Stud Lock, Slam Lock

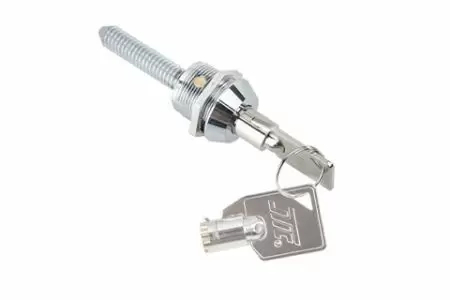

19mm diameter vending machine cam lock, surface Chrome finish. VT510 key is made as tubular type which can be withdraw in in one or four position. The cylinder is 7 pin design which can arrange up to 10,000 groups of number combinations. Standard screw length is 35.4mm. VT650 key is flat type which can be withdraw in two or four position. The cylinder is 5 disc tumbler mechanism which can arrange up to 100 groups of number combinations. Standard screw length is 30.8mm.

Quantity:
Inquire Add to Basket

The lock fixed by Hex nuts. The length of screw can be adjusted according to customer requested and processing procedures can also be added based on product functional requirements such as anti-drilling, marking numbers, laser, tapping, CNT…etc. Customized is available. This cam lock can be used on vending machine doors, as well as cabinets, wooden furniture, industrial equipment, packaging machines, data cabinets, medical cabinets...etc.

Features
  • VT510-1 zinc alloy die cast housing and brass cylinder, with one key pull.
  • VT510-4 brass housing and cylinder, with four key pulls.
  • VT650 zinc alloy die cast housing and brass cylinder, with two or four key pulls.
  • VT510 7pin tumbler mechanism, steel made tubular keys, nickel plated.
  • VT650 5 disc tumbler mechanism, steel made tubular keys, nickel plated.
  • Standard thread on shaft is 5/16"-18.
  • VT510 "L" dimension 35.4mm standard, VT650 "L" dimension 30.8mm standard, others upon customer request.
  • Hex nut or speed clip mounted.
  • All keyed alike or 25 combinations standard.
  • 100 combinations available.
Order Information
  • Refer to drawings, samples, etc. as the confirmation of product specification before placing the order.
  • After the order confirmed, the cancellation of the order or change the order contents can be allowed within 7 days from the date of receiving the order.
  • Delivery time: Estimated delivery time for standard product orders of 3,000pcs is within 45 days.
  • The minimum order quantity of the product is 500PCS/lot, and the order of "price based on quantity" also can be accepted (for details, please negotiate with the salesman)
  • Products can be customized according to customer requirements, as: Key combination, parts configuration, wire soldering process, surface treatment, key extraction position, adding anti-vibration, dust-proof, anti-static, and other functions.
  • UL approval and RoHS 2.0 (2011/65/EU) compliant.
  • The test report of the specified project can be provided according to the customer requested.
