19mm Brass Tube Key Cabinet Lock

5 0 Reviews

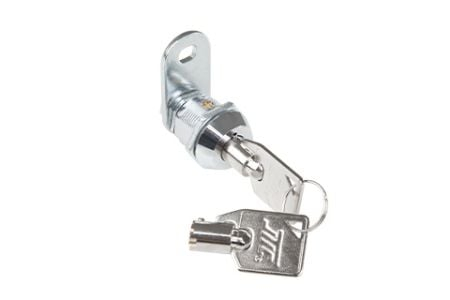

C510UZ, C519ZS

Tubular Lock, Furniture Lock, Plum Lock

19mm multi-diameter and multi-specification change brass tube key cabinet lock. Its 19mm diameter cam lock, surface Chrome finish. It is designed for a combination of 7 pins, which can arrange up to 10,000 groups of different numbers combination. Considering the assembly method and position for use in different environments, a variety of lengths (7/16", 5/8", 7/8", 1 1/8", 1 3/8") and steering functions are available for customers to choose. C519ZS is thin head design, surface polished chrome finish, Suitable for advanced cabinet appearance requirements panels. The key is brass tube body and steel handle by nickel-plated for easy insertion and rotation.

Quantity:
Inquire Add to Basket

The end of cylinder is fixed by Hex nut, it also can be fixed by screws according to the needs. There are more than 100 different specifications can for choosing. Processing procedures can also be added according to product functional requirements, such as: anti-drilling, marking numbers, laser, tapping, CNT, etc. Customized is also available. This camlock has a wide range of uses, such as its suitable for game machines, cash boxes, self-service laundry equipment, letter boxes, cabinets, safe deposit boxes, slot machines, chassis shells, vending machines, control panels, medical equipment, packaging machines...etc.

Features
  • C510XS brass housing and cylinder.
  • C510ZSS, C510UZS, C510UZM, C510UZL and C510XXL zinc alloy die cast housing and cylinder.

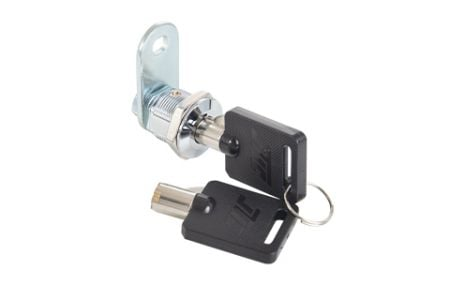

  • C519ZS zinc alloy die cast housing and cylinder, thin head design.
  • Bright chrome plated standard.
  • 7 pin tumbler mechanism.
  • Steel made tubular keys, nickel plated.
  • Key may be withdrawn in one or both positions.
  • 5 sizes available.
  • Various cam configurations and rotations available.
  • Cam is affixed by nut or screw.
  • Hex nut mounted.
  • All keyed alike or one combination per 100 pcs standard.
  • 10,000 combinations available.
Order Information
  • Refer to drawings, samples, etc. as the confirmation of product specification before placing the order.
  • After the order confirmed, the cancellation of the order or change the order contents can be allowed within 7 days from the date of receiving the order.
  • Delivery time: Estimated delivery time for standard product orders of 3,000pcs is within 45 days.
  • The minimum order quantity of the product is 500PCS/lot, and the order of "price based on quantity" also can be accepted (for details, please negotiate with the salesman)
  • Products can be customized according to customer requirements, as: Key combination, parts configuration, wire soldering process, surface treatment, key extraction position, adding anti-vibration, dust-proof, anti-static, and other functions.
  • UL approval and RoHS 2.0 (2011/65/EU) compliant.
  • The test report of the specified project can be provided according to the customer requested.
