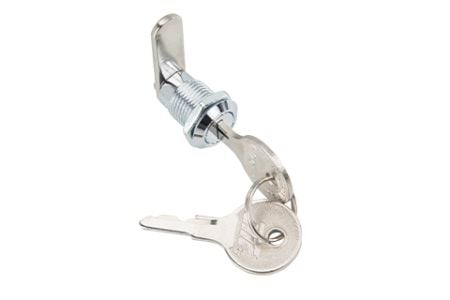

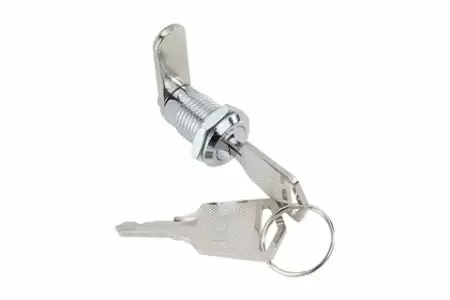

12mm Micro Cam Lock With Flat Key

5 0 Reviews

C1091, C1093

Cabinet Lock, Disc Tumbler Lock

Micro Cam Lock (C1091 & C1093) is 12mm diameter cam lock made with bright chrome plated. C1091 is made with 4 disc tumbler mechanism designed for 14 key combinations maximum. C1093 is made with 5 disc tumbler mechanism designed for 30 key combinations maximum. Single-bitted brass keys of nickel plated.

Quantity:
Inquire Add to Basket

Jin Tay offers different kinds of dimension cams, cam assembly by screw, clip or hex nut mounted for installation available. It can be customized like surface treatment, cam specification…and so on.

This cam lock is suitable to use on mailbox, storage box, paper towel rack, convenient box and toolbox.

Features
  • Zinc alloy die cast housing and cylinder.
  • Bright chrome plated standard.
  • C1091 is 4 disc tumbler mechanismC1093 is 5 disc tumbler mechanism.
  • Brass keys, nickel plated.
  • Key may be withdrawn in one or both or three positions.
  • Various cam configurations and rotations available.
  • Cam is affixed by screw.
  • C1091 is hex nut mountedHex nut or clip mounted for C1093.
  • All keyed alike or 14 to 30 combinations standard.
  • 30 combinations maximum.
Order Information
  • Refer to drawings, samples, etc. as the confirmation of product specification before placing the order.
  • After the order confirmed, the cancellation of the order or change the order contents can be allowed within 7 days from the date of receiving the order.
  • Delivery time: Estimated delivery time for standard product orders of 3,000pcs is within 45 days.
  • The minimum order quantity of the product is 500PCS/lot, and the order of "price based on quantity" also can be accepted (for details, please negotiate with the salesman)
  • Products can be customized according to customer requirements, as: Key combination, parts configuration, wire soldering process, surface treatment, key extraction position, adding anti-vibration, dust-proof, anti-static, and other functions.
  • UL approval and RoHS 2.0 (2011/65/EU) compliant.
  • The test report of the specified project can be provided according to the customer requested.
