Laptop Dedicated Lock Pin Accessories

5 0 Reviews

C919-P*

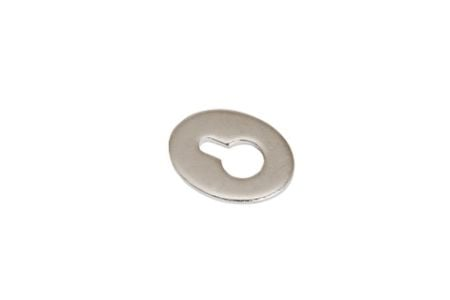

Laptop Keyhole Foot Pin, 3*7 K-Hole Foot Pin

Special 3*7 K-hole foot pin indicated to notebook computer using which applicable to various models.

There are different wire diameter specifications and pin thickness can be selected per customers requested.

Quantity:
Inquire Add to Basket

The zinc alloy material is strong, not easy to be damaged also the nickel plating on the surface is not easy to be scratched.

Features
  • Zinc alloy with Nickel plated.
  • C919-P1: foot pin width 10.0mm and thickness 2.0mm, wire hole ∅ 6.4
  • C919-P11: foot pin width 10.0mm and thickness 2.0mm, wire hole ∅ 6.7
  • C919-P15: foot pin width 10.0mm and thickness 1.5mm, wire hole ∅ 6.4
Function Specification
型號 線徑 腳寬 腳厚
C919-P1 Ø 6.4 10.0mm 2.0mm
C919-P11 Ø 6.7 10.0mm 2.0mm
C919-P15 Ø 6.4 10.0mm 1.5mm
Order Information
  • Refer to drawings, samples, etc. as the confirmation of product specification before placing the order.
  • After the order confirmed, the cancellation of the order or change the order contents can be allowed within 7 days from the date of receiving the order.
  • Delivery time: Estimated delivery time for standard product orders of 3,000pcs is within 45 days.
  • The minimum order quantity of the product is 500PCS/lot, and the order of "price based on quantity" also can be accepted (for details, please negotiate with the salesman)
  • Products can be customized according to customer requirements, as: Key combination, parts configuration, wire soldering process, surface treatment, key extraction position, adding anti-vibration, dust-proof, anti-static, and other functions.
  • UL approval and RoHS 2.0 (2011/65/EU) compliant.
  • The test report of the specified project can be provided according to the customer requested.
