19mm T-Handle Vending Machine Lock

5 0 Reviews

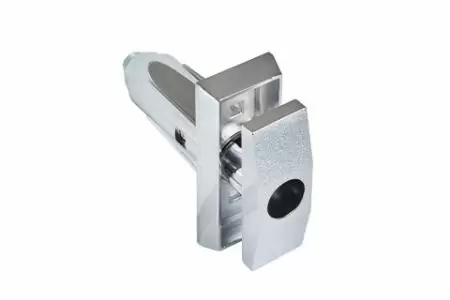

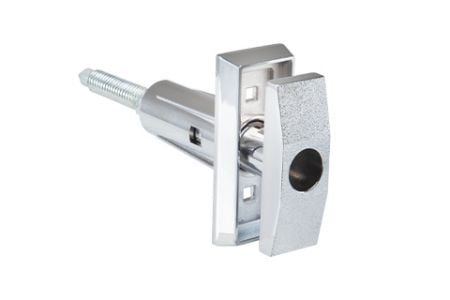

T701, T702

Vending Handle, Vending Handle with Threaded Stud

T-handle Vending Machine Lock is suitable for 19mm diameter lock hole installation. They are special for vending machine application. T701 shaft is 90 degree turn and fixed with square spindle, T702 shaft is 360degree turn and fixed with round spindle. Surface bright chrome over a matte textured finish caused it is hard to damage. The product body is thick and strong. Special lock components need to be attached separately, please refer to VT series products which also can be customized available.

Quantity:
Inquire Add to Basket

The product is special designed for vending machine which can 90-degree turn or 360-degree turn to unlock. There are also several lock products can be matched for choose such as V series locks. The standard length of square spindle is 15.4mm and round is 63.5mm. The length of spindle can be customized available.

Features
  • Zinc alloy die cast housing, bright chrome over a matte textured face is standard.
  • Steel shaft, zinc plated.
  • Handle comes complete without cylinder.
  • T701 thread on shaft 1/2"-20Shaft dimension 15.4mm & 90 degrees rotation handle standard, others upon request.
  • T702 thread on shaft 1/2"-13Shaft dimension 63.5mm & 360 degrees rotation handle standard, others upon request.
  • Ideal for using on vending applications.
Order Information
  • Refer to drawings, samples, etc. as the confirmation of product specification before placing the order.
  • After the order confirmed, the cancellation of the order or change the order contents can be allowed within 7 days from the date of receiving the order.
  • Delivery time: Estimated delivery time for standard product orders of 3,000pcs is within 45 days.
  • The minimum order quantity of the product is 500PCS/lot, and the order of "price based on quantity" also can be accepted (for details, please negotiate with the salesman)
  • Products can be customized according to customer requirements, as: Key combination, parts configuration, wire soldering process, surface treatment, key extraction position, adding anti-vibration, dust-proof, anti-static, and other functions.
  • UL approval and RoHS 2.0 (2011/65/EU) compliant.
  • The test report of the specified project can be provided according to the customer requested.
