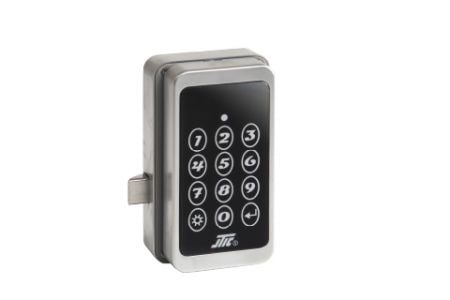

Dual-Function Intelligent NFC Cabinet Lock By Using Sensor Card And Password

5 0 Reviews

# iT603N

Personal Cabinet Lock, Normal Cabinet Lock, Convenience Box Lock, NFC Lock

NFC lock using the match-setting NFC card to unlock which have up to 100 NFC cards available and also can use the password to unlock directly. It is suitable for multiple people to use environment. Usually it's long-off state caused low power consumption. Use 4 AAA batteries and can also use external charging for emergency needed. iT603N can switch and setting continuously for at least 2,000 times when the battery is full. The passwords can be set and managed easily which has a clear button on the back to return the original factory settings.

Quantity:
Inquire Add to Basket

Zinc alloy with stain nickel-plated finishing, conform with IP54 waterproof and dustproof certification. So, it is suitable for use in places with temperature of -20°C ~ +75°C.

There is no limitation of panel thickness when installing and using, so it applied to variety of personal or public facilities such as cabinets, mailboxes, tool boxes…etc.

Features
  • Zinc alloy material, satin chrome plated, one NFC-IC cards per each lock.
  • Set up new card and password by yourself.
  • Unlock by password, NEC-IC card or key.
  • Shared space use or private use available.
  • Removal-switch to return to the original factory setting.
  • No limited for device panel thickness.
  • 2,000 times lock / unlock per new batteries.
  • LED indicator & Beep sound for operation.
  • Low battery warning.
  • Micro USB seat supply emergency charging using.
  • RoHS compliant.
Parametric
  • Battery: 4 x AAA battery.
  • Water proof: IP54
  • NFC-IC card: 13.56MHz and ISO 14443A compliant.
  • User card capacity: 10 piexes
  • Password capacity: 10 sets, 4-6 digits.
  • ESD: 8kV
Order Information
  • Refer to drawings, samples, etc. as the confirmation of product specification before placing the order.
  • After the order confirmed, the cancellation of the order or change the order contents can be allowed within 7 days from the date of receiving the order.
  • Delivery time: Estimated delivery time for standard product orders of 3,000pcs is within 45 days.
  • The minimum order quantity of the product is 500PCS/lot, and the order of "price based on quantity" also can be accepted (for details, please negotiate with the salesman)
  • Products can be customized according to customer requirements, as: Key combination, parts configuration, wire soldering process, surface treatment, key extraction position, adding anti-vibration, dust-proof, anti-static, and other functions.
  • UL approval and RoHS 2.0 (2011/65/EU) compliant.
  • The test report of the specified project can be provided according to the customer requested.
