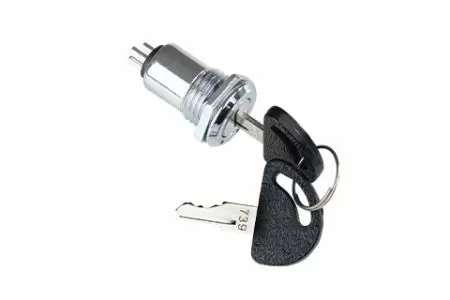

16mm 60° Indexing Switch Lock

5 0 Reviews

S331, S332, S333

Disc Tumbler Lock, Lock Switch

16mm mid-size key switch lock made of zinc alloy die cast housing with bright chrome plated, nylon cylinder and flat brass key with plastic cover, 3 disc tumbler mechanism with silver plated contacts and terminals, ball bearing designed built-in for phase distinct, 16 key code combinations available.

Quantity:
Inquire Add to Basket
Specification

Key switch lock (S331) is made with 2 positions of 3 terminals for switch function ON-ON, S332 made with 2 positions of 2 terminals for switch function OFF-ON, S333 made with 3 positions for right turn 60 degrees and again right turn 60 degrees for key withdrawal in 3 positions of 3 terminals for switch function OF-ON-ON, the lock is installed by hex nut or speed clip that can process the lock with wire assembly, laser engraved and stamping key code upon customer requested.

Contact rating: 0.2A, 125VAC, passed 6,000 times life cycle test, ROHS and REACH compliant, suitable to use on voting machine, gaming machine, communication facilities, cash register, telephone equipment and payee machine of parking lot.

Features
  • Zinc alloy die cast housing and nylon cylinder.
  • Bright chrome plated standard.
  • 3 disc tumbler mechanism.
  • Brass keys, nickel plated, with plastic cover.
  • Key may be withdrawn in one or both or three positions.
  • Silver plated contacts and terminals.
  • S331 2 position (on-on) 60 index 3 terminals.
  • S332 2 position (off-on) 60 index 2 terminals.
  • S333 3 position (off-on-on) 60 index 3 terminals.
  • Hex nut or speed clip mounted.
  • All keyed alike or 4 combinations standard.
  • 16 combinations available.
Order Information
  • Refer to drawings, samples, etc. as the confirmation of product specification before placing the order.
  • After the order confirmed, the cancellation of the order or change the order contents can be allowed within 7 days from the date of receiving the order.
  • Delivery time: Estimated delivery time for standard product orders of 3,000pcs is within 45 days.
  • The minimum order quantity of the product is 500PCS/lot, and the order of "price based on quantity" also can be accepted (for details, please negotiate with the salesman)
  • Products can be customized according to customer requirements, as: Key combination, parts configuration, wire soldering process, surface treatment, key extraction position, adding anti-vibration, dust-proof, anti-static, and other functions.
  • UL approval and RoHS 2.0 (2011/65/EU) compliant.
  • The test report of the specified project can be provided according to the customer requested.
