19mm IP54 Anti-Vibration Function Switch Lock With Flat Key

5 0 Reviews

S2983

electric vehicle lock, scooter lock

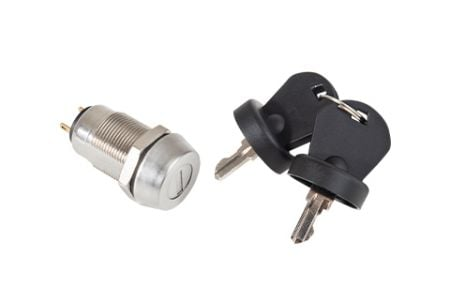

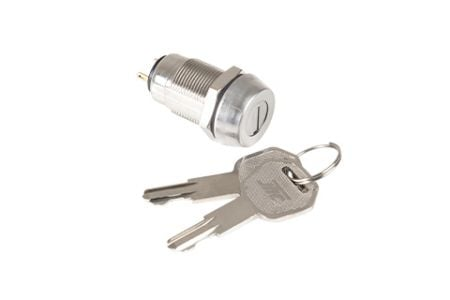

The 19mm shockproof and waterproof power switch lock meets the IP54 dustproof and waterproof coefficient standard and also has a shockproof design. It is suitable for use on dynamic or outdoor equipment, such as mobility scooters, golf carts, lawn mowers, forklifts, etc. The key can be freely selected with or without a rubber cover according to the habits or needs of the end user. There are 20 sets of number changes. The MASTER KEY system design can also be used to improve the anti-theft quality and facilitate management. The lock body is made of zinc alloy, with gold-plated contacts and terminals as the basis for stable power supply quality.

Quantity:
Inquire Add to Basket
Specification

With multiple waterproof protection, anti-seismic device and dust-proof design, it can be used in a wide range of applications, including indoor and outdoor equipment or instruments, such as communication equipment, medical equipment, security systems, computer equipment, etc. The power lock switch has passed the life test of 6,000 times and complies with RoHS and REACH standards.

Contact rating: 3A 125VAC, passed life cycle test of 6,000 times, ROHS and REACH compliant suitable to use on weeder, electric vehicle, electronic boxes, and vessel equipment.

Features
  • Zinc alloy die cast housing and cylinder.
  • Barrel nickel plated housing.
  • Stainless steel capped bezel with dust shutter mechanism.
  • Anti-vibration & waterproof function.
  • 4 disc tumbler mechanism.
  • Brass keys, nickel plated, key with key cover available.
  • Golden plated contacts and brass terminals.
  • Key withdrawn in both positions.
  • 2 position (off-on) 2 terminals.
  • Hex nut mounted.
  • All keyed alike or 20 combinations standard.
  • Meets IP55 standard.
Function Specification
  • Contact Rating: 4A 125VAC, 2A 250VAC. 4A 28VDC
  • Contact Resistance: 50Milli-Ohms Max.
  • Insulation Resistance: 109 Ohm Min
  • Dielectric Strength: 1000 VAC -1 Minute.
Order Information
  • Refer to drawings, samples, etc. as the confirmation of product specification before placing the order.
  • After the order confirmed, the cancellation of the order or change the order contents can be allowed within 7 days from the date of receiving the order.
  • Delivery time: Estimated delivery time for standard product orders of 3,000pcs is within 45 days.
  • The minimum order quantity of the product is 500PCS/lot, and the order of "price based on quantity" also can be accepted (for details, please negotiate with the salesman)
  • Products can be customized according to customer requirements, as: Key combination, parts configuration, wire soldering process, surface treatment, key extraction position, adding anti-vibration, dust-proof, anti-static, and other functions.
  • UL approval and RoHS 2.0 (2011/65/EU) compliant.
  • The test report of the specified project can be provided according to the customer requested.
