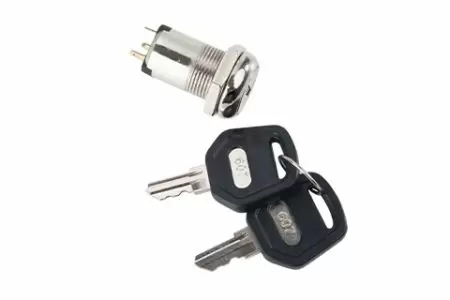

19mm Anti-Vibration Function Switch Lock With Flat Key

5 0 Reviews

S2982A

Disc Tumbler Lock, Lock Switch

19mm diameter anti-vibration function key switch lock made of zinc alloy die cast material housing and cylinder with bright nickel plated, 4 disc tumbler designed and dust shutter mechanism for dust-proof available to use on movement application, flat brass keys with plastic cover for 20 key code combinations, key rotation right hand turn 90 degrees, silver plated contacts and golden plated terminals assembled.

Quantity:
Inquire Add to Basket
Specification

The lock made with 3 terminals for switch function ON-ON of power circuit type SPDT that key only can withdrawal at 12:00 position only, lock is mounted by hex nut or speed clip that can process the lock with wire assembly, laser engraved and stamping key code depend on customer requested for making mass production quantity of customized products.

Contact rating: 3A 125VAC, passed life cycle test of 6,000 times, ROHS and REACH compliant suitable to use on weeder, electric vehicle, electronic boxes, and vessel equipment.

Features
  • Zinc alloy die cast housing and cylinder.
  • Barrel nickel plated housing.
  • Stainless steel capped bezel with dust shutter mechanism.
  • Anti-vibration function.
  • 4 disc tumbler mechanism.
  • Brass keys, nickel plated, with plastic cover.
  • Golden plated contacts and brass terminals.
  • Key withdraws in one position.
  • 2 position (on-on) 3 terminals.
  • Hex nut or speed clip mounted.
  • All keyed alike or 10 combinations standard.
  • 25 combinations available.
Function Specification
  • Contact Rating: 3A 125VAC, 2A 250VAC.
  • Contact Resistance: 50Milli-Ohms Max.
  • Insulation Resistance: 109 Ohm Min
  • Dielectric Strength: 1000 VAC -1 Minute.
Order Information
  • Refer to drawings, samples, etc. as the confirmation of product specification before placing the order.
  • After the order confirmed, the cancellation of the order or change the order contents can be allowed within 7 days from the date of receiving the order.
  • Delivery time: Estimated delivery time for standard product orders of 3,000pcs is within 45 days.
  • The minimum order quantity of the product is 500PCS/lot, and the order of "price based on quantity" also can be accepted (for details, please negotiate with the salesman)
  • Products can be customized according to customer requirements, as: Key combination, parts configuration, wire soldering process, surface treatment, key extraction position, adding anti-vibration, dust-proof, anti-static, and other functions.
  • UL approval and RoHS 2.0 (2011/65/EU) compliant.
  • The test report of the specified project can be provided according to the customer requested.
