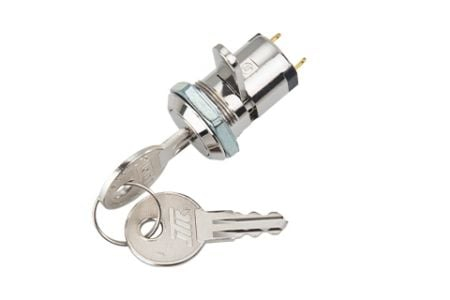

19mm Dual-Functioned Switch Lock With Double Bitted Flat Lock

5 0 Reviews

S2096, S2097, S2098, S2099

Disc Tumbler Lock, Lever Tumbler Lock, Lock Switch

19mm diameter key switch lock made of zinc alloy die cast material housing and cylinder with bright nickel plated, lock made with cam for dual-functioned, reversible double-bitted brass key with nickel plated, 4 disc tumbler mechanism of silver plated contacts and brass terminals for 25 combinations combined cam lock and key switch lock function used for more application available.

Quantity:
Inquire Add to Basket
Specification

The lock made with 2 positions assembled 2 ~ 4 pieces terminals variation that key withdrawal at 12:00 position only or pull out in 12:00 and 3:00 positions, S296 is made with 2 terminals (OFF-ON), S297 is made with 2 terminals (ON-OFF), S298 is made with 3 terminals (ON-ON), S299 is made with 4 terminals (ON-ON), lock is mounted by hex nut or speed clip that can process the lock with wire assembly, laser engraved, stamping key code and machining depend on customer requested.

Contact rating: 4A 125VAC, Contact resistance: 50 Milli-Ohmas Max, Insulation resistance: 109 Ohm Min. Dielectric strength: 1000VAC-1 Minute , passed life cycle test of 6,000 times, ROHS and REACH compliant suitable to use on engine control appliance, bicycle and communication facilities.

Features
  • Zinc alloy die cast housing and cylinder.
  • Nickel plated standard.
  • 4 disc tumbler mechanism.
  • Reversible double-bitted brass keys, nickel plated.
  • Dual-functioned Key Lock Switch.
  • Key may be withdrawn in one or both positions.
  • Silver plated contacts and brass terminals.
  • S2096 2 position (off-on) 2 terminals.
  • S2097 2 position (on-off) 2 terminals.
  • S2098 2 position (on-on) 3 terminals.
  • S2099 2 position (on-on) 4 terminals.
  • Hex nut or speed clip mounted.
  • All keyed alike or 25 combinations standard.
  • 25 combinations available.
Function Specification
  • Contact Rating: 4A 125VAC, 2A 250VAC.
  • Contact Resistance: 50Milli - Ohms Max.
  • Insulation Resistance: 109 Ohm Min.
  • Dielectric Strength: 1000 VAC - 1 Minute.
Order Information
  • Refer to drawings, samples, etc. as the confirmation of product specification before placing the order.
  • After the order confirmed, the cancellation of the order or change the order contents can be allowed within 7 days from the date of receiving the order.
  • Delivery time: Estimated delivery time for standard product orders of 3,000pcs is within 45 days.
  • The minimum order quantity of the product is 500PCS/lot, and the order of "price based on quantity" also can be accepted (for details, please negotiate with the salesman)
  • Products can be customized according to customer requirements, as: Key combination, parts configuration, wire soldering process, surface treatment, key extraction position, adding anti-vibration, dust-proof, anti-static, and other functions.
  • UL approval and RoHS 2.0 (2011/65/EU) compliant.
  • The test report of the specified project can be provided according to the customer requested.
