19mm 5 Disc Changeover Switch Lock

5 0 Reviews

S206A, S206B, S286A, S286B

Tubular Lock, Pin Tumbler Lock, Lock Switch

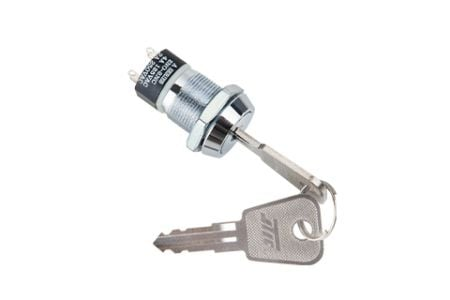

19mm 5 disc key switch lock has zinc alloy die cast housing and cylinder. S206 is 7 pin tumbler mechanism designed for 10,000 key code combinations, tubular brass keys with nickel plated, S286 is 5 disc tumbler mechanism designed for 150 key code combinations, double-bitted flat brass keys with nickel plated. Silver plated contacts and 4 terminals.

Quantity:
Inquire Add to Basket
Specification

The lock made with 2 positions for key withdrawal at 12:00 position only, also available for key pull out in 12;00 and 3:00 positions. S206A S286A switch function OFF-ON, power circuit type DPST, unelectrified at 12:00 position, electrify for 1-2,3-4 terminals at 3:00 position. S206B S286B switch function ON-ON, power circuit type DPDT, electrify for 1-2 terminals at 12:00 position and change 3-4 terminals at 3:00 position. The lock is mounted by hex nut or speed clip. It is available for the lock with wire assembly, anti-drilled, laser engraved, stamping key code, machining depends on customer requested.

Contact rating: 4A 125VAC, passed life cycle test of 6,000 times, ROHS and REACH compliant suitable to use on traffic signal control machine, electrical equipment, computer case and power distribution box.

Features
  • Zinc alloy die cast housing and cylinder.
  • Bright chrome plated standard.
  • S206 7 pin tumbler and S286 5 disc tumbler mechanism.
  • Steel made tubular keys, nickel plated.
  • Key may be withdrawn in one or both positions.
  • Silver plated contacts and terminals.
  • S206A S286A 2 position (off-on) 4 terminals (2NO 2NC).
  • S206B S286B 2 position (on-on) 4 terminals (1NC 1NC).
  • Hex nut or speed clip mounted.
  • All keyed alike or one combination per 100pcs standard.
  • 10,000 combinations max.
Order Information
  • Refer to drawings, samples, etc. as the confirmation of product specification before placing the order.
  • After the order confirmed, the cancellation of the order or change the order contents can be allowed within 7 days from the date of receiving the order.
  • Delivery time: Estimated delivery time for standard product orders of 3,000pcs is within 45 days.
  • The minimum order quantity of the product is 500PCS/lot, and the order of "price based on quantity" also can be accepted (for details, please negotiate with the salesman)
  • Products can be customized according to customer requirements, as: Key combination, parts configuration, wire soldering process, surface treatment, key extraction position, adding anti-vibration, dust-proof, anti-static, and other functions.
  • UL approval and RoHS 2.0 (2011/65/EU) compliant.
  • The test report of the specified project can be provided according to the customer requested.
