19mm Diameter UL Certified Switch Lock With Tubular Key

5 0 Reviews

S202, S202ZA, S212, S212ZA

Round Tube Lock, Plum Lock, Pin Tumbler Lock

19mm diameter of UL certified high security key switch lock made of zinc alloy die cast material with bright chrome plated, brass tubular keys of nickel plated, 7 pin tumbler mechanism designed for 100 key code combinations as standard, maximum 10,000 combinations available, silver plated contacts and brass terminals.

Quantity:
Inquire Add to Basket
Specification

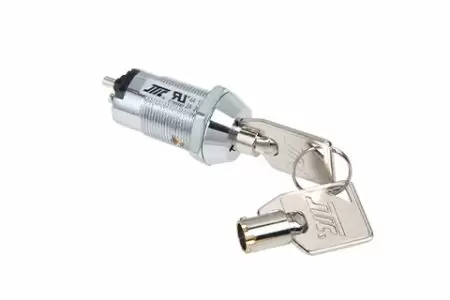

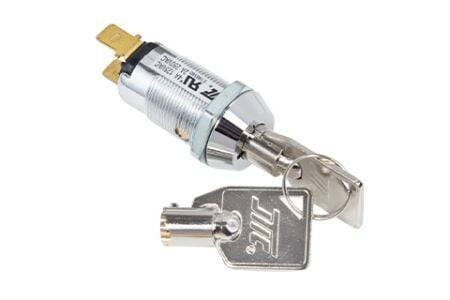

19mm UL certified power lock with tubular key (S202) is post terminal, S212 is spade terminal.

S202 S212 made with 2 terminals for key rotation 12;00 ~ 3:00 positions, switch function OFF-ON for key withdrawal at 12:00 and 3:00 position or key pull out in 12;00 position only. S202A S212A made with spring loaded for momentary contact for key rotation 12:00 ~ (3:00) of switch function OFF-(ON) that key rebound at 3:00 position for key pull out at 12:00 position only, lock is mounted by hex nut. Jin Tay can offer the process for the lock with wire assembly, anti-drilled, laser engraved, stamping key code, machining and key with plastic cover depend on customer requested for making mass production quantity of customized products.

Contact rating: 4A 125VAC, contact resistance: 50 Milli-Ohms Max, Insulation resistance: 109 Ohm Min. Dielectric strength: 1500VAC-1 Minute, passed life cycle test of 6,000 times and UL approval, ROHS and REACH compliant suitable to use on vending machine, packer, slot machine, and voting machine.

Features
  • Zinc alloy die cast housing and cylinder.
  • Bright chrome plated standard.
  • 7 pin tumbler mechanism.
  • Steel made tubular keys, nickel plated.
  • Key may be withdrawn in one or both positions.
  • Silver plated contacts and brass plated terminals.
  • S202 S202A 2 position (off-on) 2 post terminals, S202A is spring load for momentary contact function.
  • S212 S212A 2 position (off-on) 2 spade terminals, S212A is spring load for momentary contact function.
  • Hex nut mounted.
  • All keyed alike or one combination per 100 pcs standard.
  • 10,000 combinations available.
Function Specification
  • Contact Rating: 4A 125VAC, 2A 250VAC.
  • Contact resistance: 50Milli - Ohms Max.
  • Insulation Resistance: 109 Ohm Min.
  • Dielectric Strength: 1000VAC - 1 Minute.
Order Information
  • Refer to drawings, samples, etc. as the confirmation of product specification before placing the order.
  • After the order confirmed, the cancellation of the order or change the order contents can be allowed within 7 days from the date of receiving the order.
  • Delivery time: Estimated delivery time for standard product orders of 3,000pcs is within 45 days.
  • The minimum order quantity of the product is 500PCS/lot, and the order of "price based on quantity" also can be accepted (for details, please negotiate with the salesman)
  • Products can be customized according to customer requirements, as: Key combination, parts configuration, wire soldering process, surface treatment, key extraction position, adding anti-vibration, dust-proof, anti-static, and other functions.
  • UL approval and RoHS 2.0 (2011/65/EU) compliant.
  • The test report of the specified project can be provided according to the customer requested.
