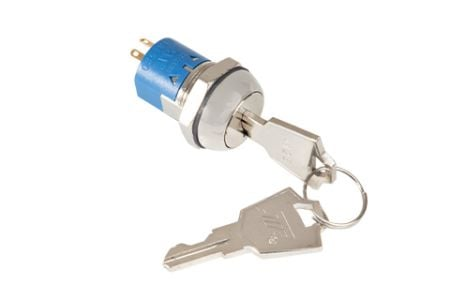

19mm UL And IP55 Certified Switch Lock With 4disc Tumbler Mechanism

5 0 Reviews

S2015

UL waterproof switch lock, waterproof key switch, multi-stage waterproof switch

19mm diameter IP55 waterproof and UL approval key switch lock made of zinc alloy die cast material housing and cylinder with bright nickel plated, 4 disc tumbler mechanism designed and brass flat keys with nickel plated for 20 key code combinations, golden plated contacts and terminals assembled.

These series products are designed master key function that is easy for arrangement and safe using.

Quantity:
Inquire Add to Basket
Specification

UL certified switch lock with flat key made with 3~8 terminals based on variety specification requested that has 2~5 multistage designed, variety different for key withdrawal positions, various models and functions refer to drawing, key withdrawal, switch function and contact adjusted available upon requested. Lock is mounted by hex nut or speed clip that can process the lock with wire assembly, laser engraved, stamping key code and master key option depend on customer requested for making mass production quantity of customized products

Contact rating: 4A 125VAC, 2A 250VAC,4A 28VDC Contact resistance: 50 Milli-Ohmas Max, Insulation resistance: 109 Ohm Min. Dielectric strength: 1000VAC-1 Minute, passed life cycle test of 6,000 times, UL approval, ROHS and REACH compliant suitable to use on electric vehicle, medical equipment, gaming machine cash register, monitor control device and transmission control equipment.

Features
  • Zinc alloy die cast housing and cylinder, with rubber washer
  • Bright nickel plated standard.
  • 4 disc tumbler mechanism.
  • Brass keys, nickel plated.
  • Key withdraw in different positions available.
  • Golden plated contacts and terminals.. Hex nut or speed clip mounted.
  • All keyed alike or 20 combinations standard.
  • 20 combinations available.
  • UL Certified
  • Meets IP55 standard
Function Specification
  • Contact Rating: 4A 125VAC, 2A 250VAC. 4A 28VDC
  • Contact Resistance: 50Milli-Ohms Max.
  • Insulation Resistance: 109 Ohm Min.
  • Dielectric Strength: 1000 VAC -1 Minute.
Order Information
  • Refer to drawings, samples, etc. as the confirmation of product specification before placing the order.
  • After the order confirmed, the cancellation of the order or change the order contents can be allowed within 7 days from the date of receiving the order.
  • Delivery time: Estimated delivery time for standard product orders of 3,000pcs is within 45 days.
  • The minimum order quantity of the product is 500PCS/lot, and the order of "price based on quantity" also can be accepted (for details, please negotiate with the salesman)
  • Products can be customized according to customer requirements, as: Key combination, parts configuration, wire soldering process, surface treatment, key extraction position, adding anti-vibration, dust-proof, anti-static, and other functions.
  • UL approval and RoHS 2.0 (2011/65/EU) compliant.
  • The test report of the specified project can be provided according to the customer requested.
