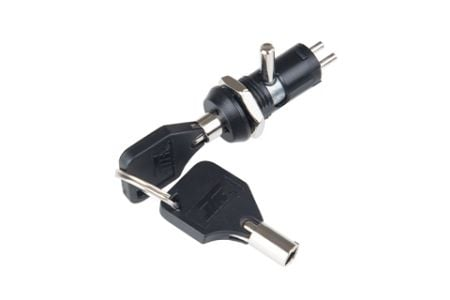

12mm Dual-Functioned Anti-Static Switch Lock

Specification

The lock made with 2 silver plated contacts and terminals for key rotation 12:00 ~ 3:00 positions, switch function OFF-ON for power circuit type SPST that key withdrawals in 12:00 and 3:00 positions. The lock is mounted by hex nut. It is available process the lock with wire assembly, laser engraved or stamping key code on lock upon customer requested.

The key switch lock is passed for life cycle test of 6,000 times for contact rating; 0.2A 125VAC, ROHS and REACH compliant, suitable to use on electrical equipment, fire control storage case, communication device, alarm system and security system so on.

Features

• PA66 + GF15% black housing and cylinder.
• No pin tumbler mechanism.
• Zinc alloy tumbler keys, nickel plated, with plastic cover.
• "L" dimension 13mm standard; other dimensions available upon request.
• Dual-functioned Key Lock Switch.
• Key withdrawals in both positions.
• Silver plated contacts and terminals.
• 2 position (off-on) 2 terminals.
• Hex nut mounted.
• All keyed alike.
• 1 combination.
• Anti-static design.

Order Information

• Refer to drawings, samples, etc. as the confirmation of product specification before placing the order.
• After the order confirmed, the cancellation of the order or change the order contents can be allowed within 7 days from the date of receiving the order.
• Delivery time: Estimated delivery time for standard product orders of 3,000pcs is within 45 days.
• The minimum order quantity of the product is 500PCS/lot, and the order of "price based on quantity" also can be accepted (for details, please negotiate with the salesman)
• Products can be customized according to customer requirements, as: Key combination, parts configuration, wire soldering process, surface treatment, key extraction position, adding anti-vibration, dust-proof, anti-static, and other functions.
• UL approval and RoHS 2.0 (2011/65/EU) compliant.
• The test report of the specified project can be provided according to the customer requested.

Gallery

•

  S1020 12mm dual-functioned switch lock Spec.
