12mm Common Keyswitch Lock

Specification

Micro switches (S109B, S1091B, S10112) is 2 terminals and switch function OFF-ON (SPST), key rotates at 12:00 ~ 3:00 2 positions. S101 series has various multi-stage power-on functions, key rotation and pull positions. S10145 is 5 terminals and switch function ON-ON-ON-ON(SP4T) key rotates at 12:00 ~ 3:00 ~ 6:00 ~ 9:00. Jin Tay offers all keyed alike or 20 combinations available. Locks are installed by hex nut. Jin Tay supports wire assembly, laser engraved or key code stamping upon customer requested.

Contact rating: 0.2A 125VAC, passed life cycle test of 6,000 times, ROHS and REACH compliant suitable to use on alarm system, control instrument and communication equipment.

Features

• Zinc alloy die cast housing and cylinder for S101 series, S109B & S1091B is plastic cylinder.
• Stainless steel capped bezel.
• Nickel plated standard.
• 4 disc tumbler mechanism.
• Brass keys, nickel plated.
• Various key withdrawals available.
• Golden plated contacts and terminals. S109B & S1091B is silver plated.
• Hex nut mounted.
• All keyed alike or 14 combinations standard.
• 14 combinations available.

Order Information

• Refer to drawings, samples, etc. as the confirmation of product specification before placing the order.
• After the order confirmed, the cancellation of the order or change the order contents can be allowed within 7 days from the date of receiving the order.
• Delivery time: Estimated delivery time for standard product orders of 3,000pcs is within 45 days.
• The minimum order quantity of the product is 500PCS/lot, and the order of "price based on quantity" also can be accepted (for details, please negotiate with the salesman)
• Products can be customized according to customer requirements, as: Key combination, parts configuration, wire soldering process, surface treatment, key extraction position, adding anti-vibration, dust-proof, anti-static, and other functions.
• UL approval and RoHS 2.0 (2011/65/EU) compliant.
• The test report of the specified project can be provided according to the customer requested.

Gallery

•

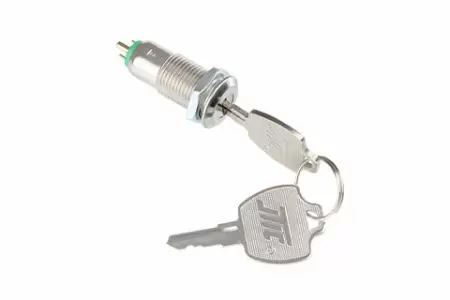

  S101 SERIES micro switch lock with flat key SPEC.

•

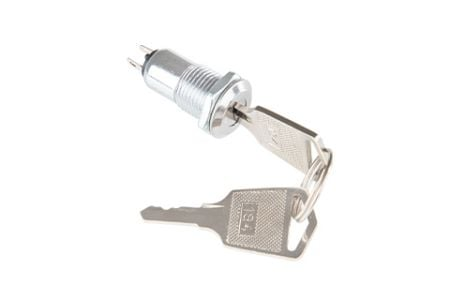

  S1091B micro switch lock with flat key SPEC.

•

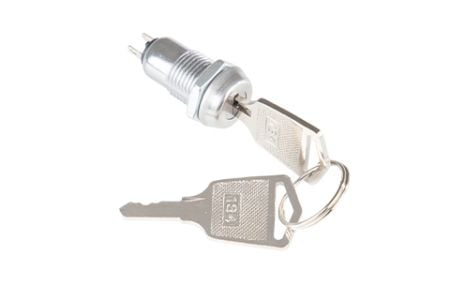

  S109B micro switch lock with flat key SPEC.
