12mm Keylock Switch With Tubular Key

Specification

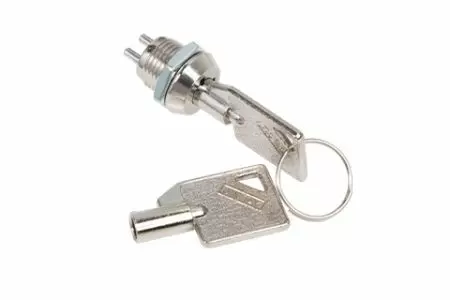

Key switch lock (NS1052 NS102) is 2 terminals and switch function OFF-ON (SPST), key rotates at 12:00 ~ 3:00 2 positions. NS1053 is 4 terminals and switch function ON-ON (SPDT), key rotates at 12:00 ~ 3:00 2 positions. NS1054 is 4 terminals and switch function OFF-ON-ON (SPDT), key rotates 11:00 ~ 12:00 ~ 3:00 3 positions, Jin Tay offers all keyed alike or 6 combinations available. NS112 is the shortest structure for 12mm key switch. Locks are installed by hex nut or speed clip according to assembled method or space option, Jin Tay supports wire assembly, laser engraved or key code stamping upon customer requested.

Life cycle test of 6,000 times at contact rating by 0.2A 125VAC, ROHS and REACH compliant. The locks are used on switch for conduction control equipment, communication facilities, alarm system and power telephone so on.

Features

• Zinc alloy die cast housing and cylinder.
• Nickel plated standard.
• No pin tumbler mechanism.
• Zinc alloy tubular keys, nickel plated.
• Key may be withdrawn in both or three positions.
• Silver plated contacts and terminals.
• NS1052 NS102 NS112 2 position (off-on) 2 terminals,
• NS1053 2 position (on-on) 4 terminals,

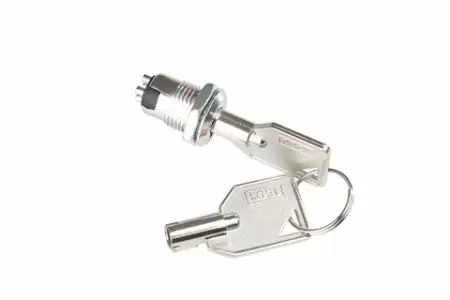

• NS1054 3 position (off-on-on) 4 terminals,
• Hex nut or speed clip mounted.
• All keyed alike or 6 combinations standard.
• 6 combinations available.

Order Information

• Refer to drawings, samples, etc. as the confirmation of product specification before placing the order.
• After the order confirmed, the cancellation of the order or change the order contents can be allowed within 7 days from the date of receiving the order.
• Delivery time: Estimated delivery time for standard product orders of 3,000pcs is within 45 days.
• The minimum order quantity of the product is 500PCS/lot, and the order of "price based on quantity" also can be accepted (for details, please negotiate with the salesman)
• Products can be customized according to customer requirements, as: Key combination, parts configuration, wire soldering process, surface treatment, key extraction position, adding anti-vibration, dust-proof, anti-static, and other functions.
• UL approval and RoHS 2.0 (2011/65/EU) compliant.
• The test report of the specified project can be provided according to the customer requested.

Gallery

•

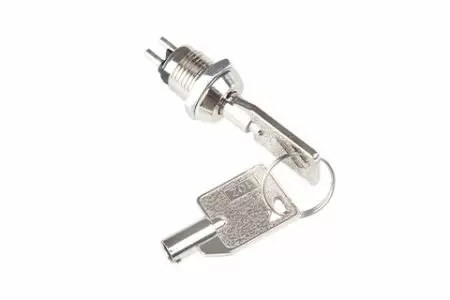

  NS102 switch lock with tubular key SPEC.

•

  NS1052 NS1053 NS1054 switch lock with tubular key SPEC.
