19mm Cam Lock With Dust Shutter

5 0 Reviews

C670, C680

Cabinet Lock, Furniture Lock

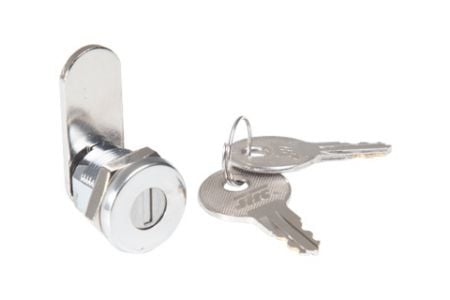

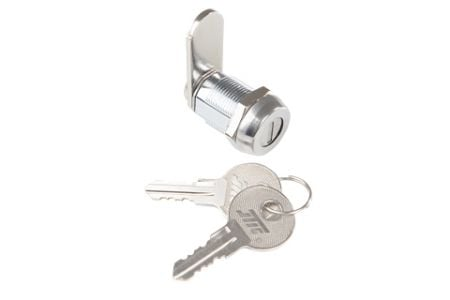

19mm Cam lock with dust shutter design and various sizes. Master key available. Suitable for panels with 19mm aperture, surface Chrome finish. Lock has stainless cover and the cylinder with dust-proof device, which can easily prevent dust or objects. Add internal O-ring to increase the key rotation feeling. C670 lock head is thin design which the end of cylinder can be fixed by screws or mounted. C680 lock head is thick design which the end of cylinder can be fixed by screws, mounted or nuts. According to the length of the lock head, there are 3 to 5 disc tumbler arrangement which can make up to 100 groups of number combinations.

Quantity:
Inquire Add to Basket

This cam lock has a wide range of uses, such as its suitable for medical cabinets, letter boxes, storage boxes, gun racks, furniture cabinets, monitoring boxes, toolboxes...etc.

Various lengths (5/8", 7/8", 1 1/8", 1 3/8") and steering functions are available for customers to choose. It also has variety of different sizes and styles cam for customers to choose for assemble. Customized is available. Master key function design for easy arrangement and safe use. Considering the assembly method and position of different use environments, you can freely choose to use Hex nuts or clips to fix the lock on the panel.

Features
  • Zinc alloy die cast housing and cylinder.
  • Stainless steel capped bezel with dust shutter mechanism.
  • Duplex chrome plated standard.
  • 3~5 disc tumbler mechanism.
  • Reversible double-bitted brass keys, nickel plated.
  • Key may be withdrawn in one or both positions.
  • 4 sizes available.
  • Various cam configurations and rotations available.
  • C670S cam is affixed by nut & rivetedOthers cam is affixed by screw.
  • C680XS cam is affixed by nut & rivetedOthers cam is affixed by screw & riveted.
  • Hex nut or speed clip mounted.
  • All keyed alike or 25 combinations standard.
  • 100 combinations available.
  • Master keyed design available.
Order Information
  • Refer to drawings, samples, etc. as the confirmation of product specification before placing the order.
  • After the order confirmed, the cancellation of the order or change the order contents can be allowed within 7 days from the date of receiving the order.
  • Delivery time: Estimated delivery time for standard product orders of 3,000pcs is within 45 days.
  • The minimum order quantity of the product is 500PCS/lot, and the order of "price based on quantity" also can be accepted (for details, please negotiate with the salesman)
  • Products can be customized according to customer requirements, as: Key combination, parts configuration, wire soldering process, surface treatment, key extraction position, adding anti-vibration, dust-proof, anti-static, and other functions.
  • UL approval and RoHS 2.0 (2011/65/EU) compliant.
  • The test report of the specified project can be provided according to the customer requested.
