19mm Furniture Cabinet Lock

5 0 Reviews

C610, C610D, C626D, C650

Cabinet Lock

19mm multi-diameter and multi-specification change furniture lock. The cylinder lock designed for a combination of 5 disc tumbler mechanism, which can arrange up to 100 groups of different numbers combination. C610 lock is covered with stainless, which the S size has a changeable cylinder design. The cylinder can be directly replaced without disassemble, which is convenient for maintenance or replacement. C610D C626D lock is covered with stainless and dust shutter. Except C610XS cylinder with nut type at the end, other specifications can be made as screw type or mounted type. These series products are designed master key function that is easy for arrangement and safe using.

Quantity:
Inquire Add to Basket

For easy assembly, you can choose to use nuts or clips to fix the lock. The end of cylinder also can be fixed by Hex nut, screws or mounted. Various lengths (7/16", 5/8", 7/8", 1 1/8", 1 3/8") and steering functions with various cam size are available for customers to choose. Customized is also available.

This camlock has a wide range of uses, such as its suitable for desk drawers, letter boxes, cash boxes, storage boxes, safe deposit boxes, gun racks, tool cabinets, cabinets, monitoring boxes, balers, motorcycle luggage...etc.

Features

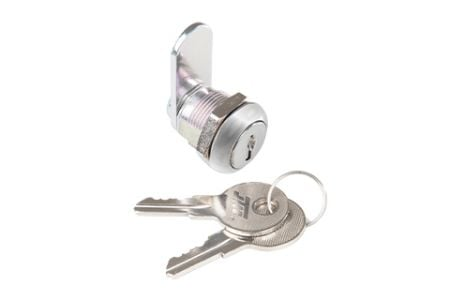

  • C610 C610D C626D zinc alloy die cast housing and cylinder, yellow chromate plated standard.

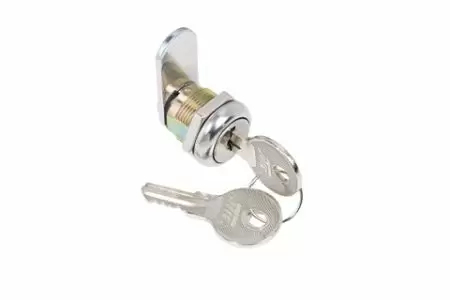

  • C610 stainless steel capped bezel.

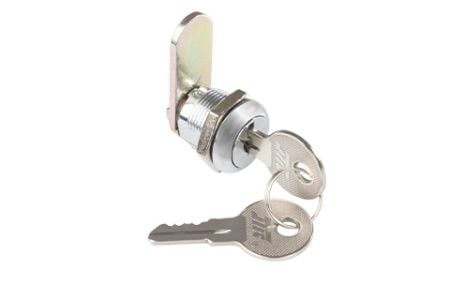

  • C650 zinc alloy die cast housing and cylinder, bright chrome plated standard.
  • 5 disc tumbler mechanism.
  • C610 C610D C650 brass keys, nickel plated.

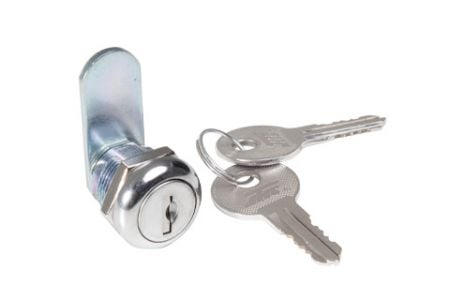

  • C626D reversible double-bitted brass keys, nickel plated.
  • Key may be withdrawn in one or both positions.
  • 5 sizes available.
  • Various cam configurations and rotations available.
  • C610XS cam is affixed by screw or nut and riveted available other sizes cam affixed by screw or riveted only.
  • Hex nut or speed clip mounted.
  • All keyed alike or 25 combinations standard.
  • 100 combinations available.
  • Master keying is available.
  • C610M has a removable core, with change key.
Order Information
  • Refer to drawings, samples, etc. as the confirmation of product specification before placing the order.
  • After the order confirmed, the cancellation of the order or change the order contents can be allowed within 7 days from the date of receiving the order.
  • Delivery time: Estimated delivery time for standard product orders of 3,000pcs is within 45 days.
  • The minimum order quantity of the product is 500PCS/lot, and the order of "price based on quantity" also can be accepted (for details, please negotiate with the salesman)
  • Products can be customized according to customer requirements, as: Key combination, parts configuration, wire soldering process, surface treatment, key extraction position, adding anti-vibration, dust-proof, anti-static, and other functions.
  • UL approval and RoHS 2.0 (2011/65/EU) compliant.
  • The test report of the specified project can be provided according to the customer requested.
